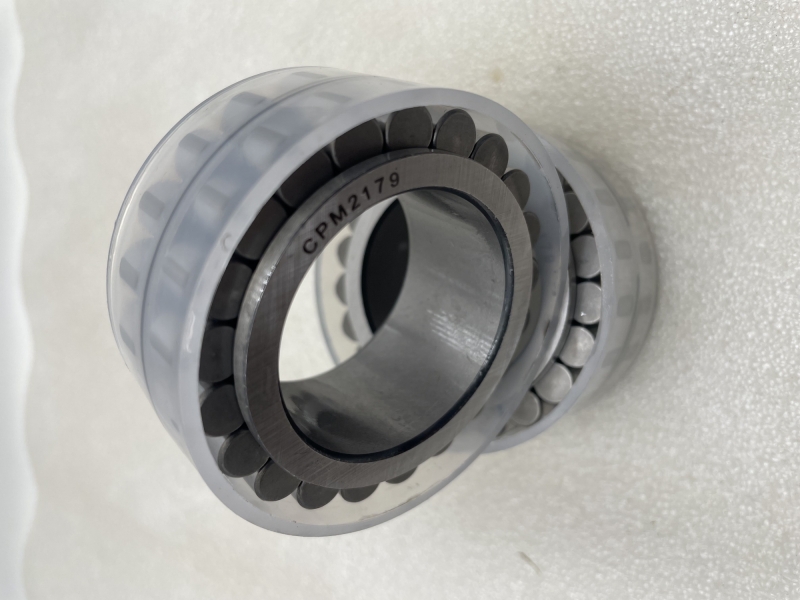

CPM2179_KORTON Bearing Industries Limited.

Specifications
Inner Diameter 40.00 MM
Outer Diameter 61.74 MM
Width 28.00 MM
Weight 0.265 kg
Cage Steel
Seal No
Bore Cylindrical
Category Roller bearings

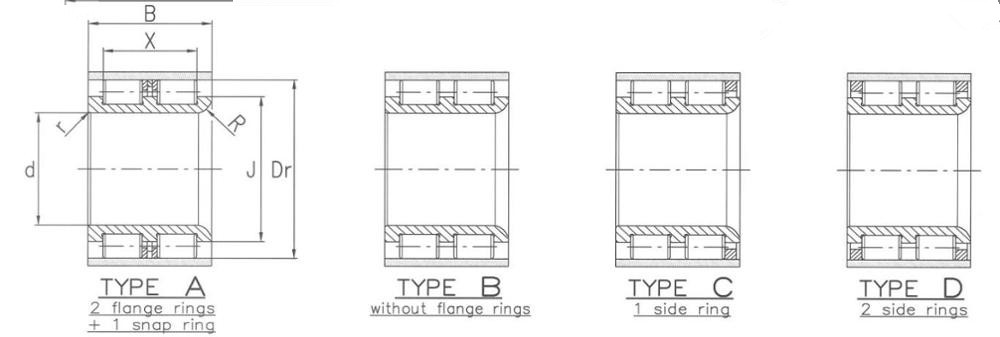

d/mm	Dr/mm	B/mm	J/mm	X/mm	R min	r min	Cr kN	Cor kN	TYPE	Bearing NO.
18	32.3	20.5	25.9	14.9	2	0.3	24.1	25.7	A	CPM 2699
22	36.2	30	30.8	23	2.5	0.7	47.5	68.8	A	CPM 2435
22	38.75	22.5	31	17.3	2	0.3	34.6	38.1	A	CPM 2535
22	38.75	22.5	31	17.3	2	0.3	34.6	38.1	A	CPM 2834
24	40.25	26	34.3	20	2.5	0.3	44	59.8	A	CPM 2400
24	40.25	34	34.3	24	2	2	53.3	76.4	A	CPM 2597
25	40.25	26	34.3	20	2.5	0.3	44	59.8	A	CPM 2686
25	40.25	32	34.3	24	3	0.3	53.3	76.4	A	CPM 2613
28	44.45	34	36.5	27.6	2.5	0.3	70.8	99.8	A	CPM 2776
30	46.4	32	38.7	27.6	2	0.3	73.2	105.7	A	CPM 2594
30	48.25	40	40.6	32	2.5	2.5	85.8	131.6	A	CPM 2687
30	49.6	26	38.6	20	3	0.3	57	70.3	D	CPM 2510
30	49.6	24	40	18	3	0.3	50.8	60.6	A	CPM 2178
30	49.6	25	40	18.9	3	0.3	50.8	60.6	A	CPM 2651
30	49.6	26	40	20	3	0.3	57.1	70.4	A	CPM 2198
30	49.6	30	40	24	2.6	0.3	69.1	90	A	CPM 2683
32	46.6	25	41	20.5	3	0.3	54.3	82.5	D	CPM 2508
32	46.6	28	41	22	3	0.3	54.3	82.5	A	CPM 2183
32	46.6	28	41	22	3	0.3	54.3	82.5	A	CPM 2439
32	48.24	34	41	27.6	2.5	0.3	76	112	A	CPM 2668
32	51.75	25	42.5	19.9	3	0.3	59.1	74.7	A	CPM 2496
32	51.75	29	42.5	24	3	0.3	71.5	95.5	A	CPM 2579
34	50.2	29	42.5	23.6	2.5	0.3	66.7	96.6	A	CPM 2634
35	49.8	28	43.9	22	3	0.3	56.8	89.7	A	CPM 2434
35	52.09	26.5	44.5	20.9	2.5	0.3	56.6	79.4	A	CPM 2723
35	55.52	36	45	28	0.6	0.6	83.6	113.6	B	CPM 2470
35	55.52	36	45	28	0.6	0.6	83.6	113.6	A	CPM 2520
35	55.52	36	45	28	2.5	0.3	83.6	113.6	A	CPM 2706
35	59.19	27	48.2	21.3	3	0.3	68.4	85.5	A	CPM 2721
35	64.3	26.5	52.9	20.9	2.5	0.3	72.9	95.7	A	CPM 2528
38	52.95	28	47	22	3	0.3	59.2	97	A	CPM 2164
38	52.95	29.5	47.5	21.9	3.2	0.1	59.2	97	A	CPM 2504
38	52.95	29.5	48.5	21.9	3.7	0.1	59.2	97	A	CPM 2806
38	54.686	29.5	49.5	20.7	4	0.1	56.9	86.7	A	CPM 2464
38	54.69	29.5	49.2	21.6	4	0.1	63	99	A	CPM 2458
38	57.91	38	48	32	3	0.3	106	156	A	CPM 2669
40	57.81	34	50	28	3.2	0.3	96	141	A	CPM 2827
40	60.68	31	51.4	25.6	3.2	0.3	80.8	118.1	D	CPM 2729
40	61.74	28	50.2	20.9	3	0.3	70.6	90.6	C	CPM 2188
40	61.74	35.5	50.2	27.6	2.6	0.3	100	140	A	CPM 2650
42	60.75	37	51.5	30.9	3	0.3	100.7	156.9	A	CPM 2412
42	60.75	37	51.5	31.6	3	0.3	107.2	169.7	A	CPM 2777
44	61.6	34	53.9	28	3.2	0.3	90.1	153	A	CPM 2592
44	62.97	37	53.4	30.9	2.5	0.3	103.5	164.4	A	CPM 2401
45	61.55	32	53.8	24.9	3	0.3	77.3	125.7	A	CPM 2559
45	61.55	36	53.9	28.9	3	0.3	90	153	A	CPM 2425
45	65.02	34	54.5	27.3	3	0.3	94.3	140.4	A	CPM 2647
45	66.85	37.5	55.8	28.6	3.5	0.3	105.8	156.7	A	CPM 2722
45	66.85	37.5	55.8	28.6	3.5	0.3	123	157	A	CPM 2828
45	83.88	85	64.2	64.7	1.1	1.1	268	393.9	D	CPM 2619
46	69.5	45	56.5	37.3	3.2	0.3	145	207	A	CPM 2807
50	67.28	32	61	25.8	3.2	0.3	75.7	145.2	A	CPM 2530
50	67.36	40	60.4	32.6	4	1	109	201	A	CPM 2720
50	69.58	40	60.3	33.3	3	0.3	118	202	B	CPM 2719
50	69.67	32	60.3	24.9	3	0.3	89.1	141	A	CPM 2492
50	69.67	37.5	60.3	31.4	2.5	0.3	111.2	186.9	A	CPM 2609
50	72.05	37	61.8	28.5	4	0.1	111.7	172.5	A	CPM 2466
50	72.33	40	59	33.1	1.1	1.1	130.9	194.3	C	CPM 2190
50	72.33	40	59	33.1	1.1	1.1	130.9	194.3	C	CPM 2465
