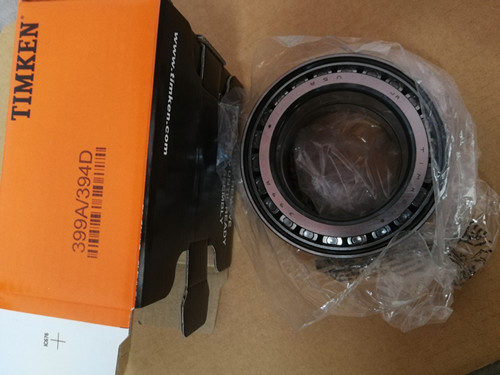

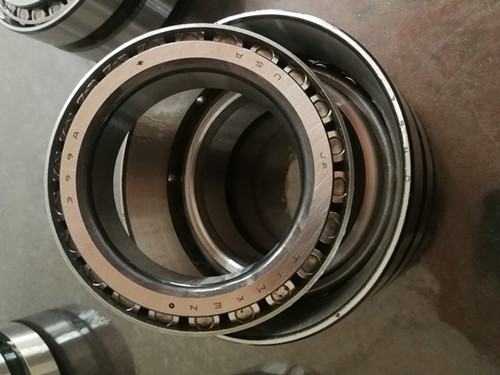

3994/394D
Taper roller bearing -TDO(Tapered Double Outer)Imperial
Series | 395 |
Cone part number | 399A |
Cup part number | 394D |
Suffix CD | Double cup with oil holes and groove |
Cage type | Stamped steel |
Main Dimension | |
d-Bore | 68.263mm |
D-Cup outer diameter | 110mm |
T-Bearing width across cones | 52.385mm |
C-Double outer ring width | 46.038mm |
Weight | 1.64 kg |
